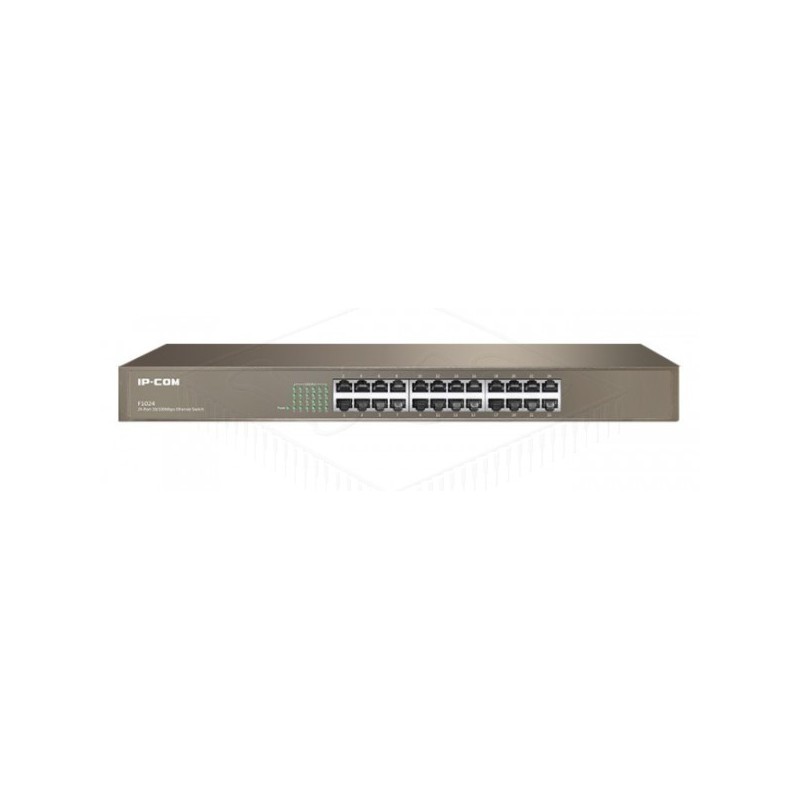

LSW-F1024

Karakteristike

24-Port Fast Ethernet Rackmount Switch
Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX standard
Support 8K MAC address list, MAC address learning and auto-ageing
Built-in 2.5Mb SRAM (1.75Mb for packet buffer) to ensure the accuracy of data packet
6000V Lightning protection for power supply

F1024 provides 24 10/100Mbps autosensing ports and all ports support Auto MDI/MDIX for parallelwire and crosswire, making this device not only can be connection to common terminal equipments, but also can be cascade connection to other nerworking equipments to extend your networking easily.F1024 can provide you a easy, economic, high-performance solution for 100M networking, which is your ideal chioce for high-speed networking.
Features
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x
- Provide 24 10/100Mbps auto-negotiation ports
- Store & forward, share memory, non-blocking architecture
- Supports MAC address self-learning and auto MDI/MDIX
- Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
- Support 8K MAC address list, MAC address learning and auto-ageing
- Built-in switching power adapter, support AC 110-240V 50/60Hz input
- 6000V Lightning protection for power supply
- Fanless design
- Standard 19-inch rack-mountable, 1U steel case
- Plug and play, no need configuration

Description 24-Port Fast Ethernet Rackmount Switch
Stardand IEEE 802.3?IEEE 802.3u?IEEE 802.3x
Transmission medium UTP CAT3 or super for 10Base-T(<100m)
UTP CAT5 for 100Base-T(<100m)
CAT 5e(<100m)
Port and module 24 FE RJ45 Ports
Backplane bandwidth 4.8Gbps
Packet forwarding rate 3.57Mpps
MAC address entries 8K
Lightning protection 6000V for power supply
Dimension 440*178*44mm(L*W*H)
Indicators Power, Link/Act
Power supply AC 100V-240V ~0.3A 50/60Hz
Power consumption MAX 5.2W(220V/50Hz)
Tenda
